FBB04004-M34S1003K6M
Download page
Board to Board 180°Vertical 0.4mm 34Circuits(HF)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.4mm
Row Option
Dual row
Number of Positions
34Circuits
Height(mm)
H0.65
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.3A
Voltage(Max)
60V
Contact Resistance
90 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
150V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
50
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

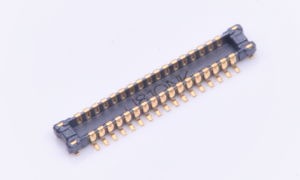

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.353618
10
$0.333508
50
$0.293287
100
$0.273177
500
$0.232956
1000
$0.181743
2500
$0.179245
5000
$0.176747
10000
$0.174249
25000
$0.171750
stock 492 In stock
MPQ: 5000
MOQ: 5000
