FBB04004-M40S1003K6M
Download page
Board to Board 180°Vertical 0.4mm 40Circuits (Mated height 0.8mm)
Product Number:
FBB04004-M40S1003K6M
Status:
Active
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.4mm
Row Option
Dual row
Number of Positions
40Circuits
Height(mm)
H0.65
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.3A
Voltage(Max)
60V
Contact Resistance
90 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
150V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
50
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

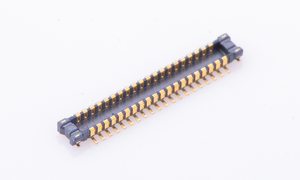

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥3.523317
10+
¥2.862695
50+
¥2.442299
100+
¥2.282148
500+
¥1.941828
stock 572 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 5000
MOQ: 5000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: ¥{{ product.price}}
Total prices: ¥{{ product.subTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FBB04004-M40S1003K6M
Board to Board 180°Vertical 0.4mm 40Circuits (Mated height 0.8mm)
MPQ: 5000
MOQ: 5000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
