FBB04005-F50S1033K6M
Download page
Board to Board 180°Vertical 0.4mm 50Circuits(HF)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.4mm
Row Option
Dual row
Number of Positions
50Circuits
Height(mm)
H0.8
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.3A
Voltage(Max)
30V
Contact Resistance
100 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
50
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

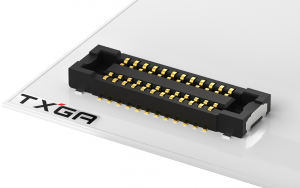

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.491528
10
$0.463574
50
$0.407668
100
$0.379714
500
$0.323808
1000
$0.252622
2500
$0.249150
5000
$0.245677
10000
$0.242205
25000
$0.238732
stock 4 In stock
MPQ: 8000
MOQ: 8000
