FBB05002-F44S1003K6MH45
Download page

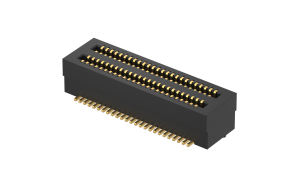

Board to Board 0.5mm 180°Vertical(SMT) Female 44Circuits(H1=4.5mm)
Product Number:
FBB05002-F44S1003K6MH45
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
44Circuits
Peg
With peg
Height(mm)
H4.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.727410
10+
$0.696753
50+
$0.593633
100+
$0.543467
500+
$0.482153
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1000
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ isCn?'¥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices: {{ isCn?'¥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
