FBB05002-F46S1003K6MH30
Download page

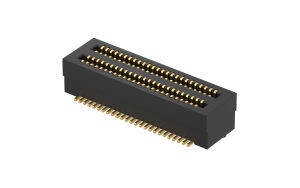

Board to Board 0.5mm 180°Vertical(SMT) Female 46Circuits(H1=3mm)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
46Circuits
Peg
With peg
Height(mm)
H3
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.752514
10
$0.720799
50
$0.614121
100
$0.562223
500
$0.498793
1000
$0.397881
5000
$0.392115
10000
$0.386348
stock: 0 Estimated delivery date 2025-04-25
MPQ: 1000
MOQ: 1000
