Where you are： TXGA → Products → Board to Board Connector → FBB05002-M → FBB05002-M38S1003K6MH20

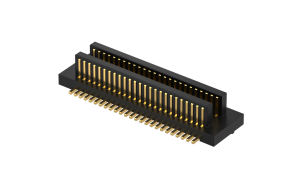

FBB05002-M38S1003K6MH20
Download page
Board to Board 0.5mm 180°Vertical(SMT) Male 38Circuits(H2=2mm)
Product System：
Board to Board Connector
Series：
Board to Board 0.5mm SMT Male (With peg)
Status：
Inactive
authentication：
REACH RoHS ELV
Product Drawings
FBB05002-M-10.pdf
Product Specifications
FBB05002-M-3.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
38Circuits
Peg
With peg
Height(mm)
H2
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.614233
10
$0.580146
50
$0.511973
100
$0.477887
500
$0.409714
1000
$0.327320
2500
$0.322805
5000
$0.318290
10000
$0.313776
25000
$0.309261
stock： 0 Estimated delivery date 2025-04-25
MPQ： 1000
MOQ： 1000
