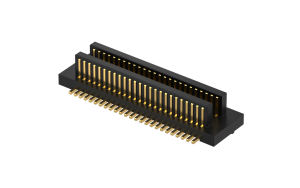

FBB05002-M60S1003K6MH13
Download page
Board to Board 180°Vertical 0.5mm 60Circuits(H2=1.3mm)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
60Circuits
Peg
With peg
Height(mm)
H1.3
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.939835
10
$0.887680
50
$0.783369
100
$0.731213
500
$0.626902
1000
$0.500831
2500
$0.493923
5000
$0.487015
10000
$0.480107
25000
$0.473199
stock 310 In stock
MPQ: 1000
MOQ: 1000
