FBB05003-F70S1003K6MH40 Board to Board 180°Vertical 0.5mm 70Circuits(H1=4mm)
你当前的浏览器版本过低或不支持。请升级或更换浏览器。推荐浏览器 Chrome Edge。
FBB05003-F70S1003K6MH40
Download page
Board to Board 180°Vertical 0.5mm 70Circuits(H1=4mm)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
70Circuits
Peg
Without peg
Height(mm)
H4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

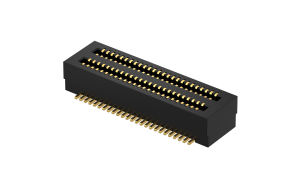

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.676937
10
$1.585101
50
$1.401431
100
$1.309596
500
$1.125925
1000
$0.905772
2500
$0.893192
5000
$0.880612
10000
$0.868032
25000
$0.855452
stock 30 In stock
MPQ: 1500
MOQ: 1500
