FBB05008-F40S1033W5MH44
Download page

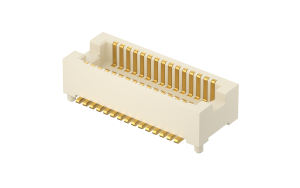

Board to Board 0.5mm, FEMALE, 40Circuits, 180° Vertical(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
40Circuits
Peg
With peg
Height(mm)
H4.35
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.655609
10
$0.619226
50
$0.546461
100
$0.510079
500
$0.437313
1000
$0.349369
2500
$0.344550
5000
$0.339731
10000
$0.334912
25000
$0.330093
stock 92 In stock
MPQ: 1500
MOQ: 1500
