FBB08001-F24S1003K6MH40
Download page
Board to Board 180°Vertical 0.8mm 24Circuits(H1=4mm)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Dual row
Number of Positions
24Circuits
Peg
With peg
Height(mm)
H4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

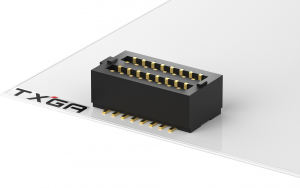

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.591687
10
$0.566750
50
$0.482871
100
$0.442065
500
$0.392191
1500
$0.312846
5000
$0.308312
10000
$0.303778
stock: 0 Estimated delivery date 2025-02-05
MPQ: 1500
MOQ: 1500
