Where you are： TXGA → Products → Board to Board Connector → FBB08005-F → FBB08005-F40S3103K6MH70

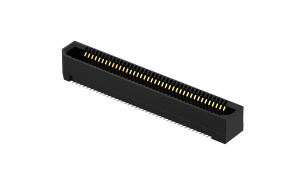

FBB08005-F40S3103K6MH70
Download page
Board to Board Connector, 0.8mm, Female, 40Circuits, Vertical(180°), SMT, With peg, H7.00, 28Gbps
Product Number：
FBB08005-F40S3103K6MH70
Status：
Active
Data Download Product Introduction Product Compliance
{{item.nameEn}}
{{file.fileName}}
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Dual row
Number of Positions
40Circuits
Peg
With peg
Height(mm)
H7
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
28Gbps
 Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
 Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.25μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$4.323770
10+
$4.090276
50+
$3.623289
100+
$3.389796
500+
$2.922809
stock 49 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 700
MOQ： 1400

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
