Where you are： TXGA → Products → Board to Board Connector → FBB08009-F → FBB08009-F24S1015K6MH40

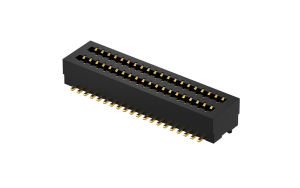

FBB08009-F24S1015K6MH40
Download page
Board to Board 0.8mm, FEMALE, 24Circuits, 180° Vertical(SMT)
Product System：
Board to Board Connector
Series：
Board to Board 0.8mm SMT Female
Status：
Active
authentication：
REACH RoHS ELV
Product Drawings
FBB08009-F.pdf
Product Specifications
FBB08009-F-1.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Dual row
Number of Positions
24Circuits
Peg
With peg
Height(mm)
H4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.390682
10
$0.368463
50
$0.324027
100
$0.301809
500
$0.257372
1000
$0.200792
2500
$0.198032
5000
$0.195272
10000
$0.192512
25000
$0.189752
stock： 0 Estimated delivery date 2025-04-29
MPQ： 1500
MOQ： 1500
