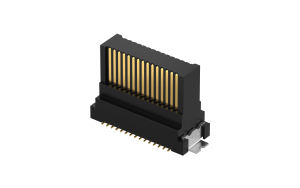

FBB08010-M60S1003BKM Board-to-Board Floating Connector 0.8mm, MALE, 60Circuits, 180° Vertical(SMT) (Mated H=12.75mm)

Building Technology Cornerstone

中文 / English

Building Technology Cornerstone

中文 / English

你当前的浏览器版本过低或不支持。请升级或更换浏览器。推荐浏览器 Chrome Edge。

谷歌Chrome

Edge浏览器

FBB08010-M60S1003BKM

Download page

Board-to-Board Floating Connector 0.8mm, MALE, 60Circuits, 180° Vertical(SMT) (Mated H=12.75mm)

Product Number：

FBB08010-M60S1003BKM

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Plug

Gender

Male

Pitch

0.8mm

Row Option

Dual row

Number of Positions

60Circuits

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

100 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

SMT

Durability (Mating Cycles Max.)

30

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

Gold flash

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FBB08010-F60S1003BKM

Board-to-Board Floating Connector 0.8mm, FEMALE, 60Circuits, 180° Vertical(SMT) (Mated H=12.75mm)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$1.351449

10+

$1.277238

50+

$1.128816

100+

$1.054605

500+

$0.906182

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 1000

MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}
