FBB12702-F114S3003BKMH51
Download page

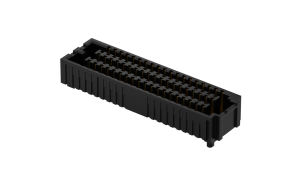

Board to Board 1.27mm 6rows, FEMALE, 114Circuits, 180°Vertical(SMT)(H1=5.05mm)(56G)
Product Number:
FBB12702-F114S3003BKMH51
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
1.27mm
Row Option
6 rows
Number of Positions
114Circuits
Peg
With peg
Height(mm)
H5.05
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
240V
Contact Resistance
50 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
700V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Data Rate
56Gbps
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
100
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$10.494691
10+
$9.982755
50+
$8.574930
100+
$7.892349
500+
$6.911138
stock 97 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1000
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
