FBB12704-F500S3003BKMH51
Download page

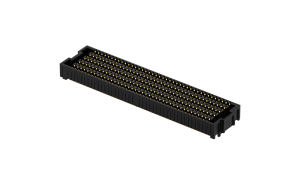

Board to Board 1.27mm 10rows, FEMALE, 500Circuits, 180°Vertical(SMT)(H1=5.05mm)(56G
Product Number:
FBB12704-F500S3003BKMH51
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
1.27mm
Row Option
10 rows
Number of Positions
500Circuits
Peg
With peg
Height(mm)
H5.05
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
240V
Contact Resistance
50 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
700V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Data Rate
56Gbps
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
100
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$39.410264
10+
$37.406353
50+
$32.062588
100+
$29.891684
500+
$26.217845
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1000
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
