FBB20001-M32S3013K6M
Download page

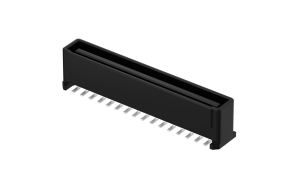

Board to Board 2mm, MALE, 32Circuits, 180° Vertical(SMT) (Mated height 14.65mm)
Product Number:
FBB20001-M32S3013K6M
Status:
Active
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
2mm
Row Option
Dual row
Number of Positions
32Circuits
Height(mm)
H8.25
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1.5A
Voltage(Max)
100V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
