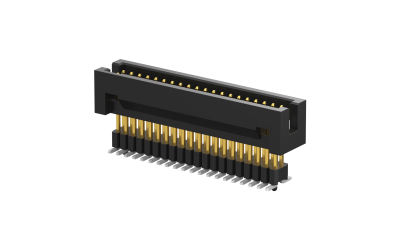

FBH12718-D80S1014K6L13A Box Header, 1.27mm, 80Circuits, Vertical(180°), SMT, PA6T, With position

FBH12718-D80S1014K6L13A

Download page

Box Header, 1.27mm, 80Circuits, Vertical(180°), SMT, PA6T, With position

Product Number：

FBH12718-D80S1014K6L13A

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Box Header/IDC

Product Category

Box Header

Style

Socket

Pitch

1.27mm

Row Option

Dual row

Number of Positions

80Circuits

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mechanical

Mounting Style

SMT

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Tube

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FFH12716-D80S1004K6M1

Female Header 1.27mm, Double row, 80Circuits, 180° Vertical(SMT), PA6T

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
