FBH20005-D24B1004K6K
Download page

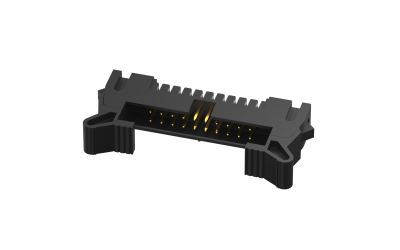

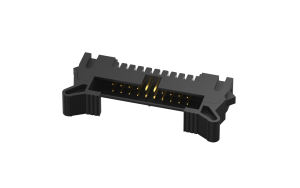

Ejector Box Header 2mm 90°Angle 24Circuits(DIP)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Ejector Box Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.558915
10
$0.527898
50
$0.465865
100
$0.434849
500
$0.372815
1000
$0.297842
2500
$0.293733
5000
$0.289625
10000
$0.285517
25000
$0.281409
stock: 0 Estimated delivery date 2025-04-22
MPQ: 1
MOQ: 1000
