FBH20006-D30S1004K6L
Download page
Ejector Box Header 2mm 180°Vertical 30Circuits(SMT)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Ejector Box Header
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
30Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
FAILED

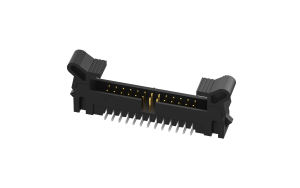

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.581698
10
$0.549417
50
$0.484855
100
$0.452574
500
$0.388012
1000
$0.309982
2500
$0.305707
5000
$0.301431
10000
$0.297155
25000
$0.292880
stock 10 In stock
MPQ: 20
MOQ: 20
