FBH25401-D14S1014K6K
Download page
Box Header 2.54mm 180°Vertical 14Circuits(DIP)(1μ'')
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
3D Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
14Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

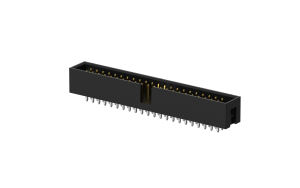

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.203951
10
$0.191852
50
$0.167653
100
$0.155554
500
$0.131355
1000
$0.097597
2500
$0.096260
5000
$0.094923
10000
$0.093586
25000
$0.092249
stock 7 In stock
MPQ: 20
MOQ: 20
