FBH25401-D60S1001K6K
Download page

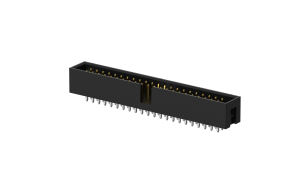

Box Header 2.54mm 180°Vertical 60Circuits(DIP)
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
3D Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
60Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.343045
10
$0.323536
50
$0.284517
100
$0.265008
500
$0.225990
1000
$0.176309
2500
$0.173885
5000
$0.171462
10000
$0.169038
25000
$0.166615
stock 359 In stock
MPQ: 20
MOQ: 20
