FCD912-2M
Download page

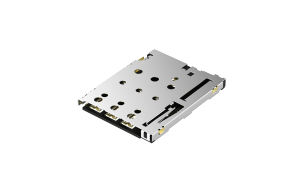

Nano SIM card connector(H1.25mm)(Push to push)
Product Number:
FCD912-2M
Status:
Active
Category
Product Catalog
Connectors
Product System
Card Connector
Product Category
SIM card connector
Type
Nano type
Number of Positions
6Circuits
Height(mm)
H1.25
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
100 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Card Install Type
Push-push
Mounting Style
SMT
Durability (Mating Cycles Max.)
5000
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥3.797899
10+
¥3.581911
50+
¥3.149936
100+
¥2.933948
500+
¥2.501973
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 2000
MOQ: 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: ¥{{ product.price}}
Total prices: ¥{{ product.subTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FCD912-2M
Nano SIM card connector(H1.25mm)(Push to push)
MPQ: 2000
MOQ: 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
