FCQ12001-A04P2212BKB000
Download page

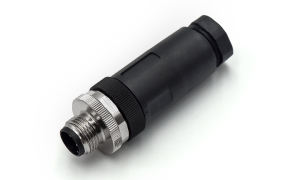

M12X1.0 MALE A CODE, ST UNSHIELDED SCREW, 4Circuits, PG9
Product Number:
FCQ12001-A04P2212BKB000
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Features
Standard
Style
Plug
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
4Circuits
Contacts Type
pin
Thread Spec
M12
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
4A
Voltage(Max)
250V
Contact Resistance
8 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
2500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP67
Fastening Method
No
Mounting Style
Screw locking
Durability (Mating Cycles Max.)
100
Material
Surface Treatment
Plating
Plating
Gold plated
Material-Resin
PA
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$5.622546
50+
$4.820241
100+
$4.684949
500+
$4.147766
1000+
$3.738765
stock 49 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 50
MOQ: 50

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
