FCS2001-F0DB303K6KC
Download page
SCSI Connector, 20Circuits, Female, Right angle(90°), Through hole, 0.075μm
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
SCSI Connector
Product Category
SCSI Connector
Style
Socket
Gender
Female
Type
Type C
Pitch
1.27mm
Number of Positions
20Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

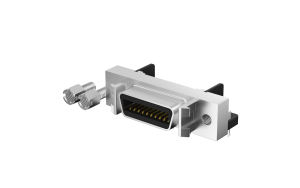

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.865440
10
$1.775899
50
$1.529661
100
$1.402811
500
$1.238652
1000
$0.999876
5000
$0.984952
10000
$0.970029
stock: 0 Estimated delivery date 2025-04-21
MPQ: 50
MOQ: 500
