FCS6815-F0DB301BKL
Download page

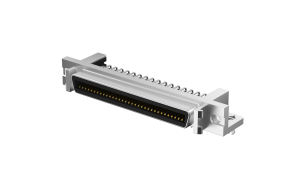

SCSI Connector 68Circuit, Female, 90° Angle(DIP), 1μ"
Product Number:
FCS6815-F0DB301BKL
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
SCSI Connector
Product Category
SCSI Connector
Style
Socket
Gender
Female
Pitch
1.27mm
Number of Positions
68Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
35 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$3.200662
10+
$3.043253
50+
$2.649729
100+
$2.426732
500+
$2.138147
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 9
MOQ: 720

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
