FDB0903-M0DS100K6KF
Download page

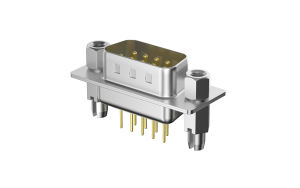

D-SUB 180°Vertical Male 9Circuits
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Stamping pin D-SUB
Style
Socket
Gender
Male
Type
Type F
Row Option
Dual row
Number of Positions
9Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.422210
10
$0.398199
50
$0.350177
100
$0.326165
500
$0.278143
1000
$0.216996
2500
$0.214013
5000
$0.211031
10000
$0.208048
25000
$0.205065
stock 95 In stock
MPQ: 50
MOQ: 1000
