FDB0906-F0WS300K6KA

Download page

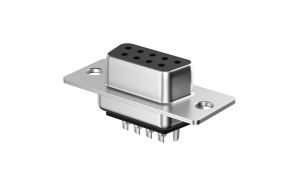

D-SUB Female 9Circuits

Product Number：

FDB0906-F0WS300K6KA

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Stamping pin D-SUB

Style

Plug

Gender

Female

Type

Type A

Row Option

Dual row

Number of Positions

9Circuits

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

3A

Voltage(Max)

250V

Contact Resistance

25 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

No

Mounting Style

Soldering

Material

Material-Contact

Copper alloy

Plating

Gold on contact, bright tin on tail

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Assembly shell

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$0.280479

10+

$0.202978

50+

$0.177145

100+

$0.162383

500+

$0.137287

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 50

MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs

FDB0906-F0WS300K6KA

D-SUB Female 9Circuits

Order quantity：

MPQ： 50

MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Name： TEL：
