FDB1502-F0DB300K6KE
Download page

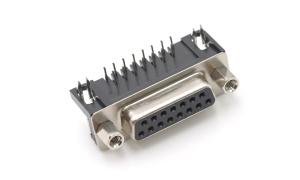

D-SUB 15Circuits, Female, 90° Angle(DIP), Gold flash, Black
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Stamping pin D-SUB
Style
Socket
Gender
Female
Type
Type E
Row Option
Dual row
Number of Positions
15Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.542991
10
$0.512111
50
$0.450351
100
$0.419471
500
$0.357710
1000
$0.279072
2500
$0.275236
5000
$0.271400
10000
$0.267564
25000
$0.263727
stock 17 In stock
MPQ: 100
MOQ: 2000
