FDB1511-F0WS300K6KC
Download page

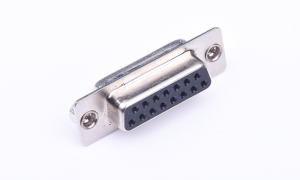

D-SUB Female 15Circuits(Black)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Stamping pin D-SUB
Style
Plug
Gender
Female
Type
Type C
Row Option
Dual row
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.399064
10
$0.376369
50
$0.330980
100
$0.308284
500
$0.262895
1000
$0.205100
2500
$0.202281
5000
$0.199462
10000
$0.196642
25000
$0.193823
stock 773 In stock
MPQ: 80
MOQ: 1040
