FDB1515-M0DB300K6KD
Download page

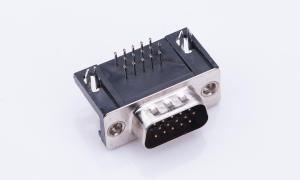

D-SUB 90°Angle Male 15Circuits(Black)
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Stamping pin D-SUB
Style
Socket
Gender
Male
Type
Type D
Row Option
3 rows
Number of Positions
15Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.492545
10
$0.464534
50
$0.408511
100
$0.380500
500
$0.324478
1000
$0.253145
2500
$0.249665
5000
$0.246185
10000
$0.242706
25000
$0.239226
stock 47 In stock
MPQ: 100
MOQ: 1000
