FDB1528-F0DB300U1K
Download page

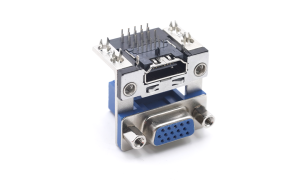

Combo Jacks D-SUB 15 Female / Blue + HDMI 19 Female
Product System:
Product Category:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Stamping pin D-SUB
Style
Socket
Gender
Female
Row Option
3 rows
Number of Positions
15Circuits
Orientation
Right angle(90°)
Colour
Blue
Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$3.355394
10
$3.173160
50
$2.808692
100
$2.626459
500
$2.261991
1000
$1.815965
2500
$1.790478
5000
$1.764991
10000
$1.739503
25000
$1.714016
stock 450 In stock
MPQ: 1
MOQ: 1000
