FDB4406-F0WS300K6KA

Download page

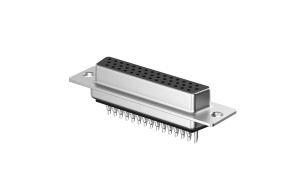

D-SUB Female 44Circuits(Black)

Product Number：

FDB4406-F0WS300K6KA

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Stamping pin D-SUB

Style

Plug

Gender

Female

Type

Type A

Row Option

3 rows

Number of Positions

44Circuits

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

3A

Voltage(Max)

250V

Contact Resistance

25 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

No

Mounting Style

Soldering

Material

Material-Contact

Copper alloy

Plating

Gold on contact, bright tin on tail

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Assembly shell

D-SUB metal hood, Applies to 25 circuits and HD44 circuits

D-SUB metal hood, Applies to 25 circuits and HD44 circuits

D-SUB plastic hood (Black)(Short bolt), Applies to 25 circuits and HD44 circuits

D-SUB hood, Metal, Applies to 25 circuits and HD44 circuits

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
