FDC0311-M0DB1GNK
Download page

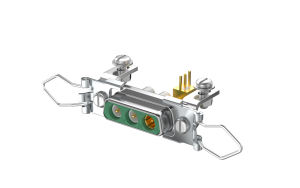

Coaxial D-sub 90°Vertical male 3Circuits(3W3)(Plating Au 30μ'')
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Mixed RF coaxial D-SUB
Style
Socket
Gender
Male
Row Option
Single row
Number of Positions
3Circuits
Contact Layout
3W3
Orientation
Right angle(90°)
Colour
Green
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
3600V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Impedance
50Ω
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.75μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$9.215558
10
$8.844653
50
$8.074313
100
$7.674877
500
$6.876005
1000
$6.305382
3000
$6.248320
5000
$6.191257
stock: 0 Estimated delivery date 2025-04-14
MPQ: 1
MOQ: 500
