FDI2401-F0DB300W1K-B
Download page

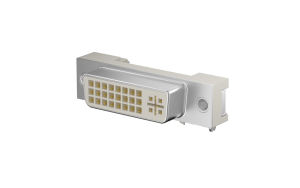

DVI Female (24+5)Circuits 90° Angle (DIP) White
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
Audio/Video Connector
Product Category
DVI
Style
Socket
Gender
Female
Type
Type B
Number of Positions
29Circuits
Orientation
Right angle(90°)
Colour
White
Electrical
Current(Max)
1.5A
Voltage(Max)
250V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.500445
10
$0.471985
50
$0.415064
100
$0.386603
500
$0.329682
1000
$0.257205
2500
$0.253670
5000
$0.250134
10000
$0.246599
25000
$0.243063
stock 2 In stock
MPQ: 50
MOQ: 1
