FDM0903-M0WS101W1K-B

Download page

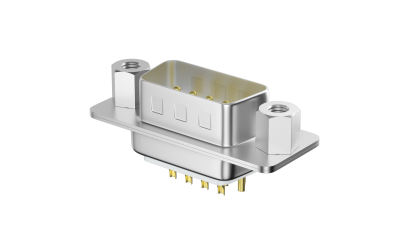

Machined pin D-SUB 9Circuits, Male, Welding, 1μ"

Product Number：

FDM0903-M0WS101W1K-B

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Machined pin D-SUB

Style

Plug

Gender

Male

Type

Type B

Row Option

Dual row

Number of Positions

9Circuits

Orientation

Vertical(180°)

Colour

White

Electrical

Current(Max)

7.5A

Voltage(Max)

300V

Contact Resistance

5 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

No

Mounting Style

Soldering

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Assembly shell

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

D-SUB metal hood, Applies to 9 circuits and HD15 circuits

D-SUB plastic hood (Gray)(Short bolt), Applies to 9 circuits and HD15 circuits

D-SUB hood, Metal, Applies to 9 circuits and HD15 circuits

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$0.831149

10+

$0.788942

50+

$0.672062

100+

$0.633102

500+

$0.548688

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 90

MOQ： 540

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
