FDM1501-M0DB101K6KC
Download page

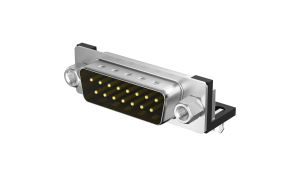

Machined pin D-SUB 90°Angle Male 15Circuits
Product System:
Product Category:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Socket
Gender
Male
Type
Type C
Row Option
Dual row
Number of Positions
15Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$2.354748
10
$2.226146
50
$1.968942
100
$1.840340
500
$1.583136
1000
$1.272717
2500
$1.254979
5000
$1.237240
10000
$1.219502
25000
$1.201764
stock: 0 Estimated delivery date 2025-04-29
MPQ: 80
MOQ: 560
