Where you are： TXGA → Products → D-Shaped Connector → FDM1511-M0 → FDM1511-M0WS103W1K

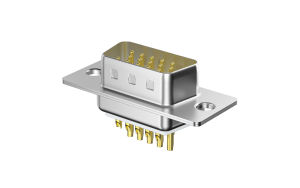

FDM1511-M0WS103W1K
Download page
Machined pin D-SUB Male 15Circuits
Product System：
D-Shaped Connector
Product Category：
Machined pin D-SUB
Series：
Machined pin D-SUB Male 15Circuits
Status：
Inactive
authentication：
REACH RoHS ELV
Product Drawings
FDM1511-M0.pdf
Product Specification Compatible Parts
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Machined pin D-SUB
Style
Plug
Gender
Male
Row Option
3 rows
Number of Positions
15Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
7.5A
Voltage(Max)
300V
Contact Resistance
30 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$1.943707
10
$1.837263
50
$1.624374
100
$1.517929
500
$1.305040
1000
$1.049864
2500
$1.035283
5000
$1.020702
10000
$1.006120
25000
$0.991539
stock： 0 Estimated delivery date 2025-04-18
MPQ： 100
MOQ： 500
