FDM4411-F0WS101W1K

Download page

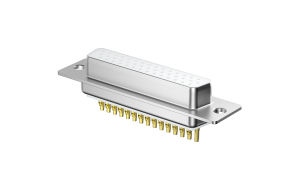

Machined pin D-SUB Female 44Circuits

Product Number：

FDM4411-F0WS101W1K

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Machined pin D-SUB

Style

Plug

Gender

Female

Row Option

3 rows

Number of Positions

44Circuits

Orientation

Vertical(180°)

Colour

White

Electrical

Current(Max)

5A

Voltage(Max)

300V

Contact Resistance

30 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

No

Mounting Style

Soldering

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Assembly shell

D-SUB metal hood, Applies to 25 circuits and HD44 circuits

D-SUB metal hood, Applies to 25 circuits and HD44 circuits

D-SUB plastic hood (Black)(Short bolt), Applies to 25 circuits and HD44 circuits

D-SUB hood, Metal, Applies to 25 circuits and HD44 circuits

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$4.914055

10+

$4.649452

50+

$4.120246

100+

$3.855643

500+

$3.326437

stock 3 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 50

MOQ： 500

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
