FDP0708-F0DS103K6KB
Download page
Hight Current D-SUB 7Circuits(7W2), Female, 180° Vertical(DIP), 3μ"(20A)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Mixed high current D-SUB W-series
Style
Socket
Gender
Female
Type
Type B
Row Option
Dual row
Number of Positions
7Circuits
Contact Layout
7W2
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
20A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

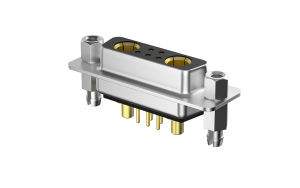

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$2.877853
10
$2.721117
50
$2.407644
100
$2.250908
500
$1.937435
1000
$1.556479
2500
$1.534710
5000
$1.512941
10000
$1.491172
25000
$1.469403
stock: 0 Estimated delivery date 2025-01-24
MPQ: 100
MOQ: 500
