FDP0901-F0WS103K6KD
Download page
Hight Current D-sub 9Circuits(9W4), Female, Welding, 3μ"(40A)
Product Number:
FDP0901-F0WS103K6KD
Status:
Active
Category
Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Mixed high current D-SUB W-series
Style
Plug
Gender
Female
Type
Type D
Row Option
Dual row
Number of Positions
9Circuits
Contact Layout
9W4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
40A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

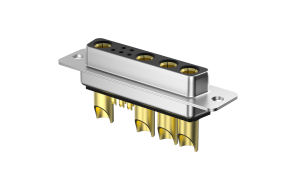

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
¥46.827575
10+
¥44.320901
50+
¥39.307553
100+
¥36.800880
500+
¥31.787532
stock 20 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 50
MOQ: 500

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: ¥{{ product.price}}
Total prices: ¥{{ product.subTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FDP0901-F0WS103K6KD
Hight Current D-sub 9Circuits(9W4), Female, Welding, 3μ"(40A)
MPQ: 50
MOQ: 500

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
