FDV0311-M0DB130K6KD
Download page
Power type D-sub 3Circuits(3V3), Male, 90° Angle(DIP), 30μ"(40A)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
D-Shaped Connector
Product Category
Mixed high current D-SUB V-series
Style
Socket
Gender
Male
Type
Type D
Row Option
Single row
Number of Positions
3Circuits
Contact Layout
3V3
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
40A
Voltage(Max)
300V
Contact Resistance
2.7 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.75μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
FAILED

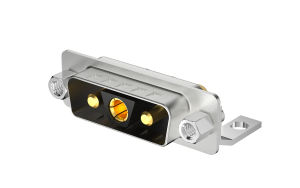

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$18.811303
10
$17.819665
50
$15.836388
100
$14.844750
500
$12.861473
1000
$10.251899
2500
$10.102781
5000
$9.953662
10000
$9.804543
25000
$9.655425
stock: 0 Estimated delivery date 2025-05-08
MPQ: 50
MOQ: 500
