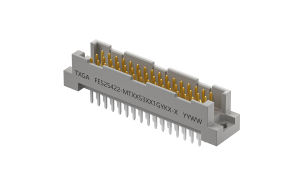

FES25422-MT48S3011GYKA-B

Download page

Eurocard Connector, 2.54mm, Male, 3 rows, 48Circuits, Vertical(180°), Through hole

Product Number：

FES25422-MT48S3011GYKA-B

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

DIN 41612 Connector

Gender

Male

Type

Type A

Pitch

2.54mm

Row Option

3 rows

Number of Positions

48Circuits

Peg

Without peg

Orientation

Vertical(180°)

Colour

Gray

Electrical

Current(Max)

2A

Voltage(Max)

500V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Copper alloy

Plating

Gold on contact, matte tin on tail

Plating Thickness

0.025μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FES25420-FT48S3011GYKA-B

Eurocard Connector, 2.54mm, Female, 3 rows, 48Circuits, Vertical(180°), Through hole

FES25428-FT48B3011GYKA-A

Eurocard Connector, 2.54mm, Female, 3 rows, 48Circuits, Right angle(90°), Through hole

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$1.571900

10+

$1.463273

50+

$1.277967

100+

$1.201289

500+

$0.849848

stock 273 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 80

MOQ： 560

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
