FES25423-MT48S3011GYKA-A

Download page

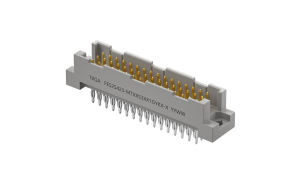

Eurocard Connector, 2.54mm, Male, 3 rows, 48Circuits, Vertical(180°), Through hole press-fit

Product Number：

FES25423-MT48S3011GYKA-A

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

DIN 41612 Connector

Gender

Male

Type

Type A

Pitch

2.54mm

Row Option

3 rows

Number of Positions

48Circuits

Peg

Without peg

Orientation

Vertical(180°)

Colour

Gray

Electrical

Current(Max)

2A

Voltage(Max)

500V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole press-fit

Material

Material-Contact

Copper alloy

Plating

Gold on contact, matte tin on tail

Plating Thickness

0.025μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FES25420-FT48S3011GYKA-B

Eurocard Connector, 2.54mm, Female, 3 rows, 48Circuits, Vertical(180°), Through hole

FES25428-FT48B3011GYKA-A

Eurocard Connector, 2.54mm, Female, 3 rows, 48Circuits, Right angle(90°), Through hole
