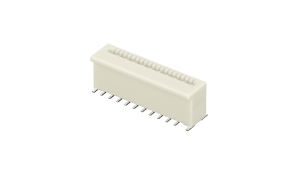

FFC05007-45SSA224W5M
Download page
FPC/FFC connector 0.5mm 45Circuits(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
45Circuits
Pin Position
Positive pin
Height(mm)
H4.2
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
Non-ZIF
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.557601
10
$0.526657
50
$0.464770
100
$0.433826
500
$0.371939
1000
$0.297141
2500
$0.293043
5000
$0.288944
10000
$0.284846
25000
$0.280747
stock: 0 Estimated delivery date 2025-04-22
MPQ: 1000
MOQ: 1
