FFC05008-06SBB124W5M
Download page

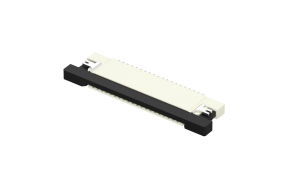

FPC/FFC connector 0.5mm Lower contact 6Circuits(H1.2)(SMT)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
6Circuits
Contact Mating Location
Bottom contact
Height(mm)
H1.2
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Slider
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.200076
10
$0.188207
50
$0.164468
100
$0.152598
500
$0.128860
1000
$0.095743
2500
$0.094431
5000
$0.093120
10000
$0.091808
25000
$0.090497
stock: 0 Estimated delivery date 2025-04-22
MPQ: 2000
MOQ: 2000
