FFC05009-21SSA124W5M
Download page
FPC/FFC connector 0.5mm 21Circuits(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
21Circuits
Pin Position
Positive pin
Height(mm)
H3.95
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Slider
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA6T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

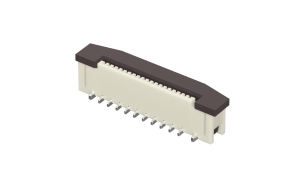

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.301527
10
$0.284379
50
$0.250083
100
$0.232935
500
$0.198639
1000
$0.154971
2500
$0.152840
5000
$0.150710
10000
$0.148580
25000
$0.146450
stock: 0 Estimated delivery date 2025-04-22
MPQ: 1000
MOQ: 1000
