FFC05009-59SSA124W5M FPC/FFC connector 0.5mm 59Circuits(SMT)

FFC05009-59SSA124W5M

Download page

FPC/FFC connector 0.5mm 59Circuits(SMT)

Product Number：

FFC05009-59SSA124W5M

Status：

Active

Data Download Product Introduction Product Compliance

Category

Product Catalog

Connectors

Product System

FPC/FFC Connector

Style

Socket

Pitch

0.5mm

Number of Positions

59Circuits

Pin Position

Positive pin

Height(mm)

H3.95

Orientation

Vertical(180°)

Colour

Natural

Electrical

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

30 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

200V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mechanical

ZIF

ZIF Style

Slider

Mounting Style

SMT

Material

Material-Contact

Phosphor bronze

Plating

Matte tin plated

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

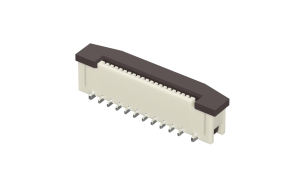

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
