FFC05035-16SBD133W5M
Download page

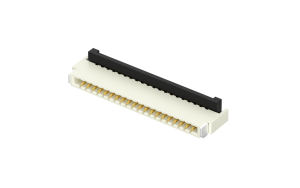

FPC/FFC connector 0.5mm Double Contact 16Circuits(H1)(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
16Circuits
Contact Mating Location
Double contact
Height(mm)
H1
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
25V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Back flip
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.259453
10
$0.244061
50
$0.213277
100
$0.197885
500
$0.167101
1000
$0.124156
2500
$0.122456
5000
$0.120755
10000
$0.119054
25000
$0.117353
stock 154 In stock
MPQ: 3500
MOQ: 3500
