FFC05036-14SBD113W5M
Download page

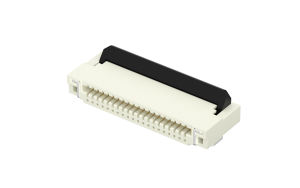

FPC/FFC connector 0.5mm Double Contact 14Circuits(H2)(SMT)
Product System:
Status:
Inactive
authentication:
REACH RoHS ELV
Product Drawings
Product Specifications
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
0.5mm
Number of Positions
14Circuits
Contact Mating Location
Double contact
Height(mm)
H2
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Back flip
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.239151
10
$0.224963
50
$0.196588
100
$0.182401
500
$0.154026
1000
$0.114441
2500
$0.112874
5000
$0.111306
10000
$0.109738
25000
$0.108171
stock: 0 Estimated delivery date 2025-04-28
MPQ: 1500
MOQ: 1500
