FFC10046-06SSB126W5M
Download page
FPC/FFC connector 1mm 6Circuits(SMT)
Product System:
Status:
Active
authentication:
REACH RoHS ELV
Product Drawings
Product Specification
Category
Product Catalog
Connectors
Product System
FPC/FFC Connector
Style
Socket
Pitch
1mm
Number of Positions
6Circuits
Pin Position
Reverse pin
Height(mm)
H4.8
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
ZIF
ZIF
ZIF Style
Slider
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Matte tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
FAILED

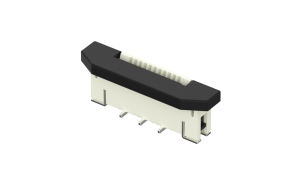

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1
$0.347726
10
$0.293249
50
$0.250363
100
$0.228340
500
$0.200522
1000
$0.156477
5000
$0.154159
10000
$0.151840
stock 105 In stock
MPQ: 900
MOQ: 900
